13.1. Network Visibility with Hubble

Task 13.1.1: Enable Hubble, Hubble Relay, and Hubble UI

Edit your cilium-enterprise-values.yaml file so that it reads:

cilium:
  (...)
  extraConfig:
    # Disable Hubble flow export.
    export-file-path: ""
  hubble:
    enabled: true
    tls:
      enabled: true
    relay:
      enabled: true
  (...)
hubble-ui:
  enabled: true

Then, run helm upgrade command to apply the new configuration:

helm upgrade cilium-enterprise isovalent/cilium-enterprise --version 1.12.3+1 \
  --namespace kube-system -f cilium-enterprise-values.yaml --wait

Task 13.1.2: Deploy a simple application

To accually see something with Hubble, we first deploy our simple-app.yaml from lab 03 again to run some experiments. Run the following command using the simple-app.yaml from lab 03:

kubectl apply -f simple-app.yaml

Now let us redo the task from lab 03.

Let’s make life again a bit easier by storing the Pod’s name into an environment variable so we can reuse it later again:

FRONTEND=$(kubectl get pods -l app=frontend -o jsonpath='{.items[0].metadata.name}')
echo ${FRONTEND}
NOT_FRONTEND=$(kubectl get pods -l app=not-frontend -o jsonpath='{.items[0].metadata.name}')
echo ${NOT_FRONTEND}

Then execute

kubectl exec -ti ${FRONTEND} -- curl -I --connect-timeout 5 backend:8080

and

kubectl exec -ti ${NOT_FRONTEND} -- curl -I --connect-timeout 5 backend:8080

You see that altought we have no kube-proxy running, the backend service can still be reached.

HTTP/1.1 200 OK
X-Powered-By: Express
Vary: Origin, Accept-Encoding
Access-Control-Allow-Credentials: true
Accept-Ranges: bytes
Cache-Control: public, max-age=0
Last-Modified: Sat, 26 Oct 1985 08:15:00 GMT
ETag: W/"83d-7438674ba0"
Content-Type: text/html; charset=UTF-8
Content-Length: 2109
Date: Tue, 14 Dec 2021 10:01:16 GMT
Connection: keep-alive

HTTP/1.1 200 OK
X-Powered-By: Express
Vary: Origin, Accept-Encoding
Access-Control-Allow-Credentials: true
Accept-Ranges: bytes
Cache-Control: public, max-age=0
Last-Modified: Sat, 26 Oct 1985 08:15:00 GMT
ETag: W/"83d-7438674ba0"
Content-Type: text/html; charset=UTF-8
Content-Length: 2109
Date: Tue, 14 Dec 2021 10:01:16 GMT
Connection: keep-alive

Task 13.1.3: Access Hubble UI

To access Hubble UI, forward a local port to the Hubble UI service:

kubectl port-forward -n kube-system svc/hubble-ui 12000:80 &

In our Webshell environment you can use the public IP of the VM to access Hubble. A simple way is to execute

echo "http://$(curl -s ifconfig.me):12000"

and copy the output in a new browser tab. If you are working locally, open your browser and go to http://localhost:12000/.

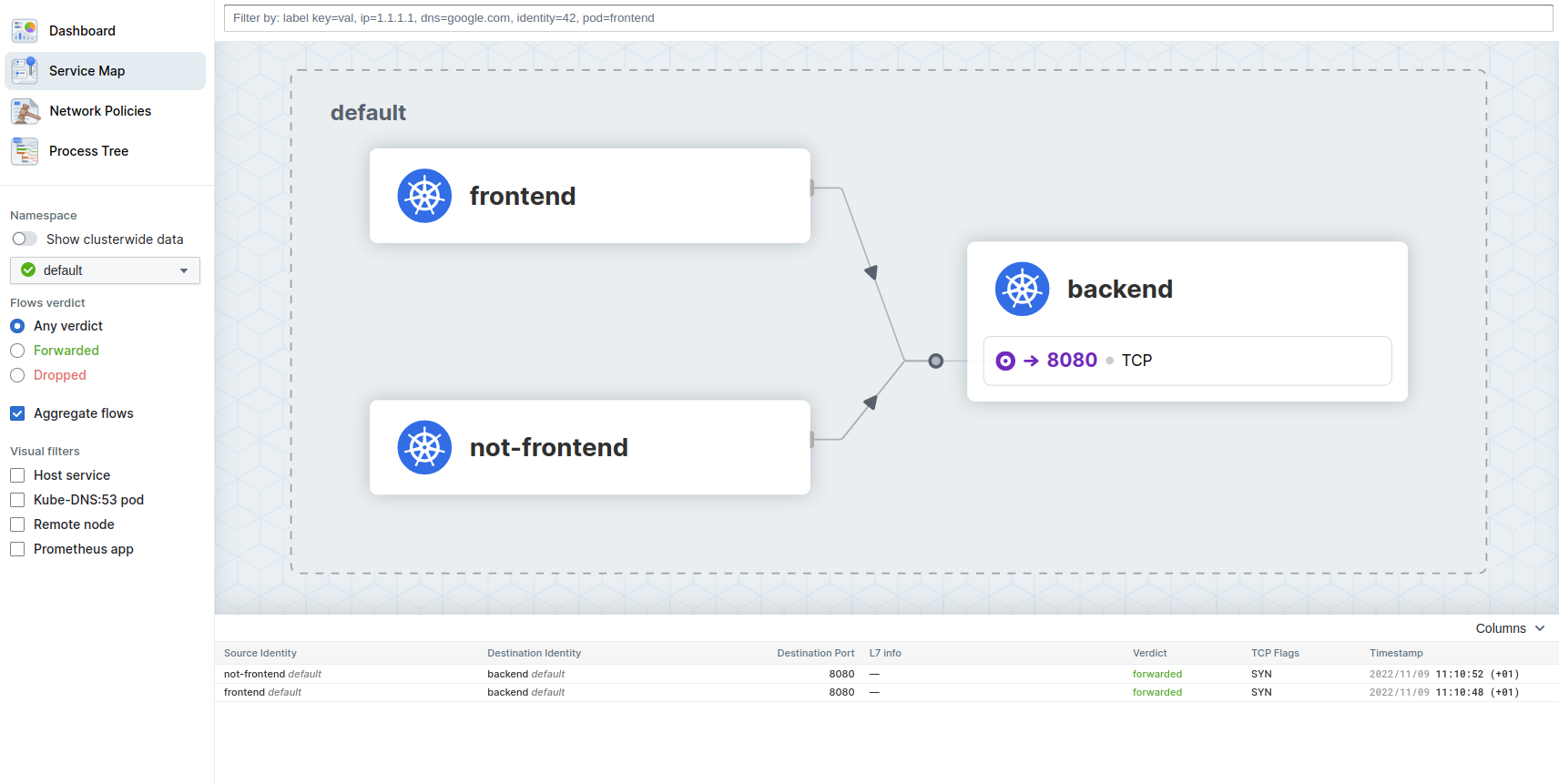

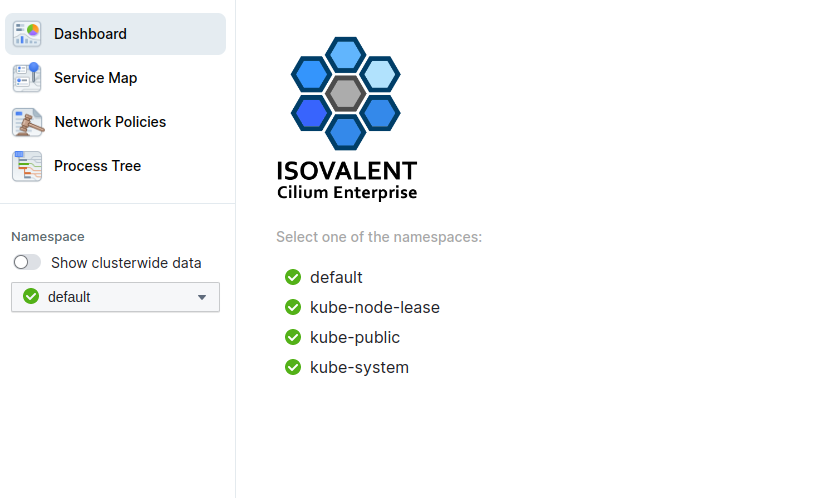

Select the default Namespace and go to Service Map:

You should see our already deployed simple app with the frontend, notfrondend and backend Pod.
